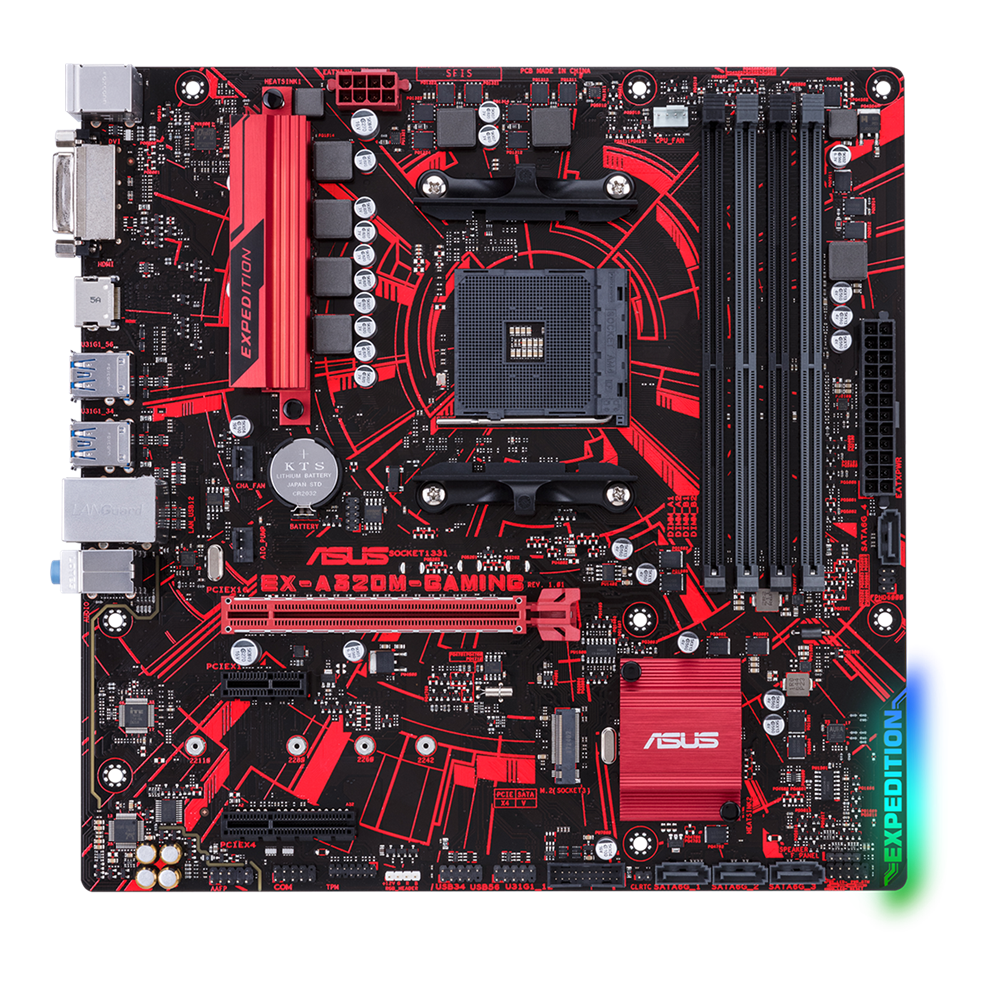

Name: EX-A320M-GAMING
Brand: ASUS
SKU: 9791

EX-A320M-GAMING

Micro-ATX A320 feature with AURA sync, Anti-moisture Coating, USBGuard and Gold-plated x16 PCIe, LAN port, and 8-pin power connector.

Non-stop action: The best choice for iCafés, built-to-order gaming systems and quality-driven businesses.
Non-stop durability: Unbeatable features including anti-moisture coating, gold-plated PCIe x16 and LAN design, USB Guard, plus 5X Protection III.
Non-stop gaming: Aura sync, ASUS Beyond VR ready, Epic audio experiences
Non-stop challenger: ASUS iCafe LAB-certified reboot- and compatibility-tested for diskless-system use, top games and 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and more.

Compare

BUILT FOR NON-STOP ACTION

Gold-plated 8-pin
Power Connector

2 DVI-D

3 HDMI

Gb LAN
LANGuard

USBGuard

Audio Features

Audio Shielding
Separate Layer for Left/Right Track
Premium Japanese^® Audio Capacitors
De-pop Circuit

Open-ended
PCI Express 3.0 x4 (@x2)

4 x DDR4 2400 Support

9 AMD^® AM4 Socket

10 Water Pump Header

PCIe SafeSlot
Gold-plated PCIe 3.0 x16

12 AMD^® A320 Chipset

EXPEDITION RGB Light

14 AURA RGB Header

BUILT FOR NON STOP ACTION

ASUS Expedition: Ready for non-stop battle

ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages — for immense longevity. We even test them to the limits, with 144 hour of diskless-system tests and extensive checks for compatibility with top games and over 100 gaming peripherals. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance — and the best stability, reliability, and value for you!

NON STOP DURABILITY

Exceptional stability and protection

ASUS Expedition motherboards offer an exclusive package of unbeatable hardware and features to ensure non-stop durability, including an anti-moisture coating, gold-plated PCIe® x16 slot and LAN connector, USBGuard protection for 120%-higher overvoltage toleration, and exclusive 5X Protection III for absolute reliability.

Anti-moisture coating

100% protection against moisture and corrosion

This innovative moisture-resistant coating provides 100% motherboard protection, and combats the higher levels of humidity that build up in densely-populated environments, such as internet cafes, libraries and data centers. It even minimizes internal corrosion by preventing the adhesion and migration of moisture — prolonging the life of your Expedition motherboard.

Gold-plated PCIe x16 and LAN design

Up to 6X-stronger durability

ASUS Expedition motherboards are equipped with a premium 30-micron-thick gold-plated LAN connector, and a 15-micron-thick gold-plated PCIe x16 port to protect your investment against corrosion, and improving durability and reliability.

USBGuard

120% higher overvoltage protection

Exclusive USBGuard technology detects voltage changes in real time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.

* USBGuard supports USB2.0 device only

SafeSlot

Protect Your Graphics Card Investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Water pump header

EX-A320M-GAMING motherboard has an integrated water-pump header that offers full control over either PWM or DC water pumps, so it's perfect for ready-made, self-contained or custom cooling setups. The header supports a maximum current of up to 3A, so you can equip any popular water-cooling solution — enabling you to dissipate heat far more efficiently than with a traditional air-cooled system!

SafeSlot Core
Surge-Protected Networking
Overvoltage Protection
Stable Power Supply
Stainless-Steel Back I/O

ASUS EXPEDITION motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

SafeSlot Core

Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

ASUS EXPEDITION motherboards have strengthened solder points around both the PCIe and DIMM pins.

LANGuard

Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DIGI+ Voltage-Regulator Module
The ASUS-exclusive Digi+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

Acclaimed UEFI Bioses

The smoothest, slickest mouse-controlled graphical Bioses has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

NON STOP GAMING

ASUS Beyond VR Ready
Perfect for iCafe Owners Wanting to Expand

Beat the competition by offering a VR experience in your iCafe with ASUS Beyond VR Ready. ASUS Expedition motherboards, plus the right mix of class-leading ASUS components, are the perfect solution for delivering the best VR experiences to your customers. ASUS Expedition motherboards passed the 3DMark VR test and further ASUS VR tests without any faults, so you can feel confident that you're offering the best performance and reliability. Expand your businesses appeal, and take your iCafe into the age of VR computing — with ASUS Beyond VR Ready!

Epic gaming audio

Discover a whole new dimension of superior audio and get ready to rule!

1
Audio shielding
Ensures precision analog/digital separation and greatly reduced multi-lateral interference.
2
Separate layer for left and right tracks
Ensures both channels deliver consistent, equal quality.
3
De-pop circuit
Reduces start-up popping noise to all audio outputs.
5
Premium Japanese-made audio capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

NON STOP CHALLENEGING

144-hr diskless solution compatibility

ASUS operates the iCafé Labs to certify Expedition motherboards for use as diskless systems, subjecting them to 144 hours of dedicated tests, including a 24-hour reboot test and 12-hour 3D Mark test with heavy loading. A total of 1,200 validation hours ensure that Expedition motherboards are ready to run non-stop — with the smooth performance you demand.

Top games and 100+ peripherals tested

ASUS iCafé Labs engineers also subject Expedition boards to lengthy stability tests in an environment that simulates a real-world internet café. We test with the top games, and with over 100 of the most popular hardware combinations, so both you and your customers are assured of the very best gaming experiences!

144-HOUR
DISKLESS TEST
24-hour reboot and 12-hour 3D Mark tests to ensure the best internet and graphics performance.
TOP GAMES
COMPATIBILITY
Certified for best gaming experience.
100+
GAMING PHERIPHELS
Certified for best gaming device compatibility.
1000+
COMPATIBLE DEVICES
Including CPUs, memory modules, graphics cards and more.
DDR4
COMPATIBILITY
More flexibility, more compatibility - support for DDR4.
7000+
VALIDATION HOURS
Extensive testing for extreme reliability, compatibility and safety.

AMD CPU and chipset features

This motherboard supports AMD® Ryzen™ processors, 7th Generation A-series accelerated processing units (APUs) and Athlon™ CPUs. The high-performance Ryzen™ processor supports up to eight cores, and is based on the innovative Zen core architecture . The 7th Generation A-series APUs feature integrated AMD Radeon R-series graphics. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.0 and 16 PCI Express® 3.0/2.0 lanes for superb performance.

The AMD A320 chipset delivers outstanding overclocking capabilities for the latest AMD® AM4-socket Ryzen™ processors, 7th Generation A-series APUs and Athlon™ CPUs. It provides two USB 3.0 ports, and four 6Gbps SATA ports for faster data retrievals.

PRIME B250M-C
BUILT FOR NON STOP ACTION
NON STOP DURABILITY
NON STOP GAMING
NON STOP CHALLENEGING

Product has High-Definition Multimedia Interface.
