PS/2
2 x USB 3.2 Gen 1
DVI-D
D-Sub
HDMI
2 x USB 3.2 Gen 2
Realtek LAN
2 x USB 3.2 Gen 1
3 x Audio jacks
PCIe 4.0 x16
ASUS SafeSlot Core
Audio Features
● LED-illuminated design
● Audio Shielding
● Premium Japanese
audio capacitors
● Dedicated audio
PCB layers
DIGI+ VRM & EPU
DDR4 support
AMD AM4 Socket
2 x Front USB 3.2 Gen 1
64Gb/s M.2 support
PCIe 4.0 x4 & SATA mode
AMD B550 Chipset
32Gb/s M.2 support
PCIe 3.0 x4 & SATA mode
4 x SATA 6Gb/s
4 x Front USB 2.0
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
Fan Xpert 2+ software provides comprehensive control over system fans. Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI Bioses.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
The renowned ASUS UEFI Bioses provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different Bioses versions or share them with friends.
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
EZ XMP
Improve DRAM performance with one click.

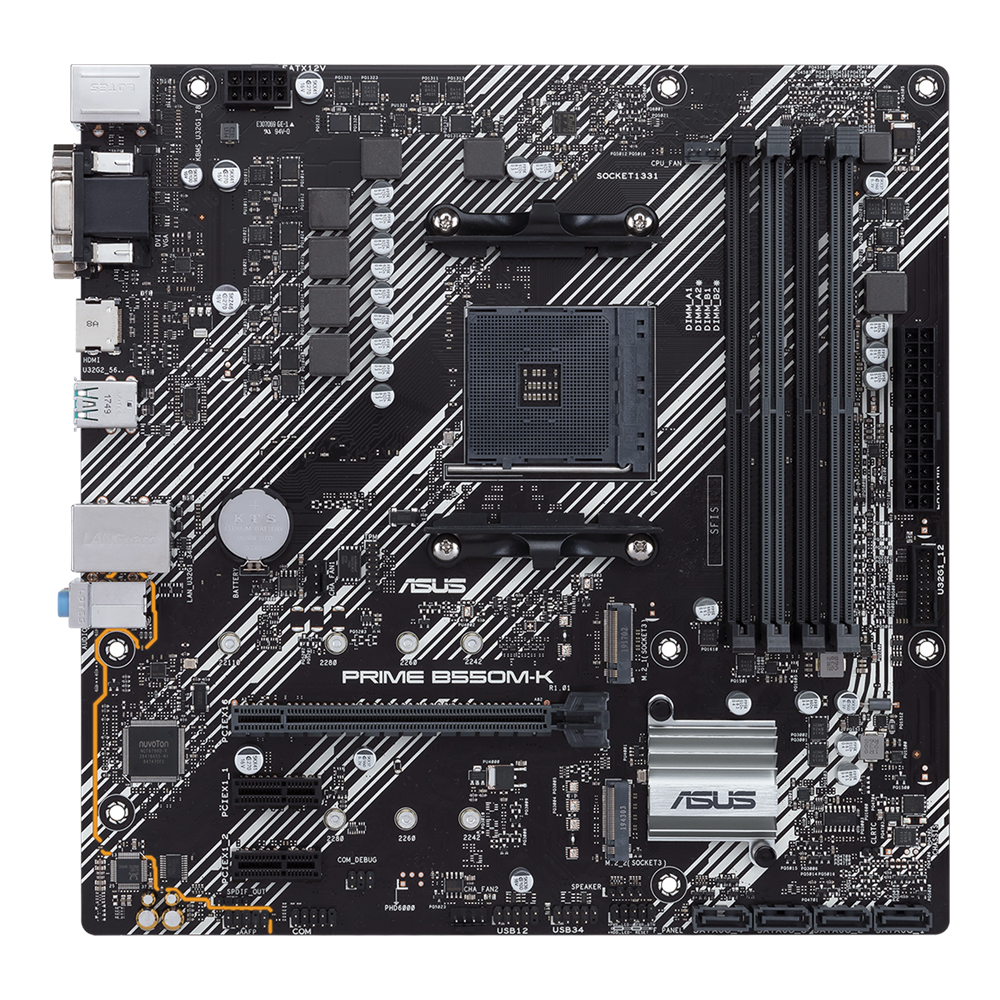

Prime B550M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI Bioses, ensuring your rig stays cool and stable under intense workloads.
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
Each onboard chassis fan header supports PWM and DC mode.
Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime B550 is geared to cater to the demands of these high-core count CPUs.
Proprietary connectors augment the motherboard's link to the PSU with 8+4 pin connectors that pass 12 volts of power directly to the processors. The jacks feature solid pins that can handle more current than hollow-pin connectors.
A VRM with 10+1 DrMOS Power Stages delivers the power and efficiency that the latest Intel processors demand.
Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Top layer – ground ring to prevent lateral interference
Motherboards with OptiMem II technology were tested with Synopsys HSPICE simulation software
PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Learn more >* Actual speed varies, and depends on networking conditions.
Numerous USB ports support high-end rigs loaded with peripherals, including two rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.
Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
The Prime B550 series provides superior compatibility with thousands of components and our Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.
Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Ensures minimal crosstalk between audio paths.
Premium parts provide an immersive sound signature, with exceptional fidelity.
Reduces power-input noise to ensure consistent performance.
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Ensures minimal crosstalk between audio paths.
Capable of driving high-impedance headphoness, without rolling-off high or low frequencies.
Reduces start-up popping noise to all audio outputs.
Premium parts provide an immersive sound signature, with exceptional fidelity.
Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
**Product specifications and battery design may vary depending on the model. For any questions, please contact ASUS official customer service.
